PU-232
PU-232 är en hårdvarubaserad RS-232 styrning som gör att du kan förlänga den med upp till 250 meter över Cat5/6 kabel.
Den stödjer full duplex kommunikation och hårdvaru handskakning, detta gör att man inte behöver göra något annat än att koppla in den.

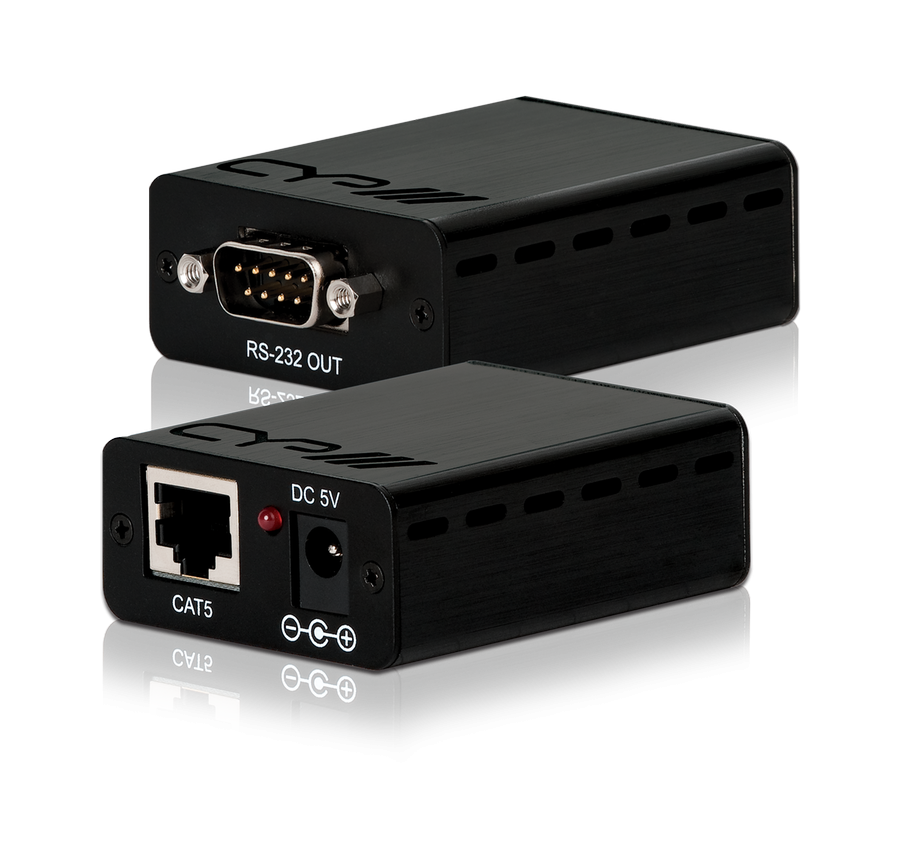

The CAT5/6 RS-232 extender is a hardware-based solution providing control of any RS-232 protocol device. This transmitter and receiver set will extend the control of RS-232 for over 250 meters. The RS-232 extender also provides full duplex transmission and hardware handshake signals, with no need for any set up or configuration.
Features:
Extends any RS-232 compliant device up to 250 metres from the source to display
Requires only one CAT5/6 cable

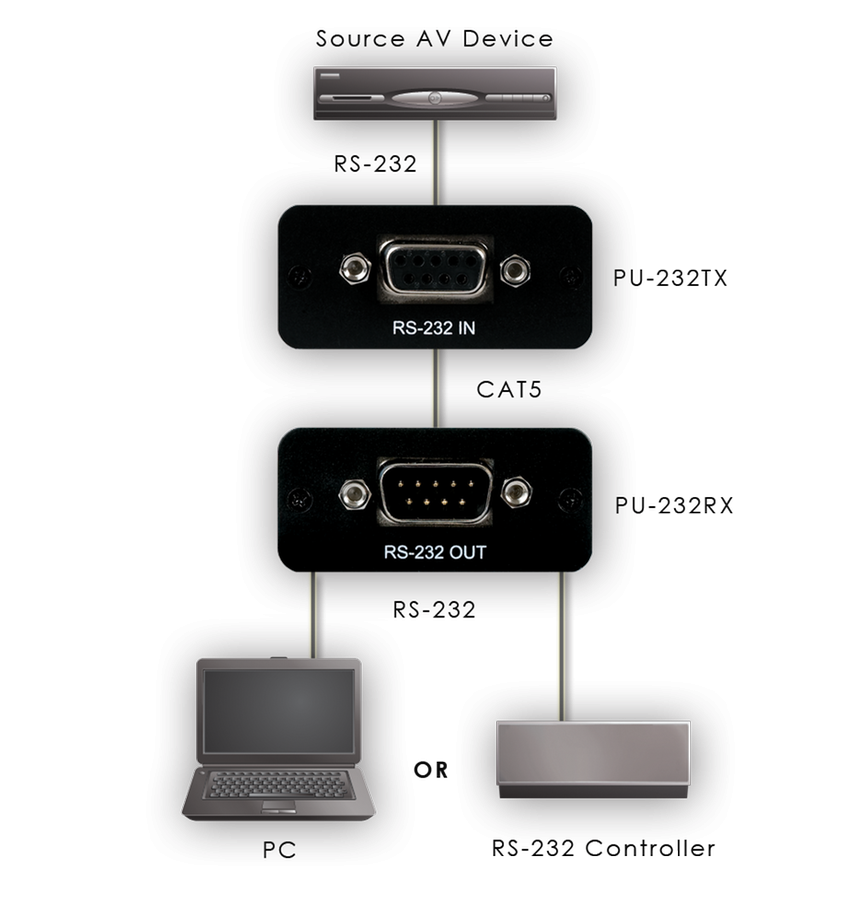

Perfect for digital signage applications
Baud Rate: 110~921600. Data bit: 8bit
Simple installation and operation
Specifications:

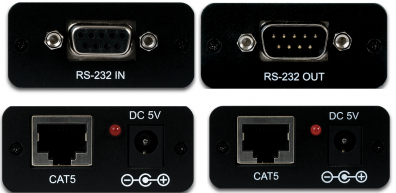

Inputs:
(RX) 1x RJ45 [1x RS-232 Propriety Data]
(TX) 1x 9pin Dsub [1x RS-232 Data]
Outputs:
(RX) 1x 9pin Dsub [1x RS-232 Data]
(TX) 1x RJ45 [1x RS-232 Propriety Data]
PSU: 5V / 1.2 A
Dimensions:
(TX) 50mm [W] x 70mm [D] x 25mm [H]
(RX) 50mm [W] x 70mm [D] x 25mm [H]
Net. Weight: (Both) 130g
Gross Weight 380g
