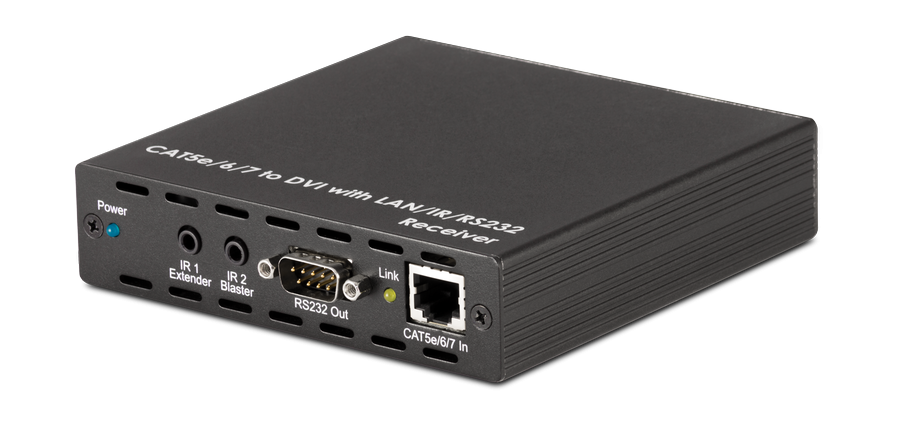

PU-DVI1109RX
PU-DVI1109RX tar emot DVI och Analogt ljud över en Cat6 kabel med hjälp av HDBaseT teknik.
Den har även möjlighet att ta emot RS-232, IR, LAN ( 2x RJ45 utgångar ) över samma kabel och strömförsörjs genom PoC.
?This HDBaseT DVI over CAT5e/6/7 receiver can receive DVI video, analog audio, 2 LAN serving connections, control (RS-232 and bi-directional IR) and Power over Cable(PoC) over a single CAT5e/6/7 cable up to 100m. The PU-DVI1109TX transmitter can power the receiver, via the PoC function, eliminating the need for a separate power supply.
Supports 3D formats and 4K2K resolution with HDMI to DVI adaptor
Simultaneous transmission of uncompressed video and audio (1080p@60Hz/Deep Color) over a single CAT5e/6/7 cable up to 100m
Supports High-definition Audio formats (up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio)
Connect and share up to 4 LAN connections (2 at the receiver end, 2 at the Transmitter end) at speeds up to 100Mbps
Supports bi-directional IR control and RS-232 pass-through
Full 5Play™ convergence: Video, Audio, LAN serving, Power over Cable (PoC) and Control (IR & RS-232 bypass)
Single power supply powers both units, Receiver unit is powered through the Transmitter via PoC
Features
Supports 3D formats and 4K2K resolution with HDMI to DVI adaptor
Simultaneous transmission of uncompressed video and audio (1080p@60Hz/Deep Color) over a single CAT5e/6/7 cable up to 100m
Supports High-definition Audio formats (up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio)
Connect and share up to 4 LAN connections (2 at the receiver end, 2 at the Transmitter end) at speeds up to 100Mbps
Supports bi-directional IR control and RS-232 pass-through
Full 5Play™ convergence: Video, Audio, LAN serving, Power over Cable (PoC) and Control (IR & RS-232 bypass)
Single power supply powers both units, Receiver unit is powered through the Transmitter via PoC
Specification
| Input: | 1x RJ45[1x HDMI & Propriety Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] |

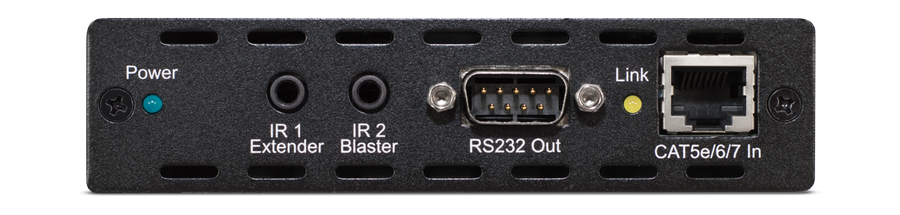

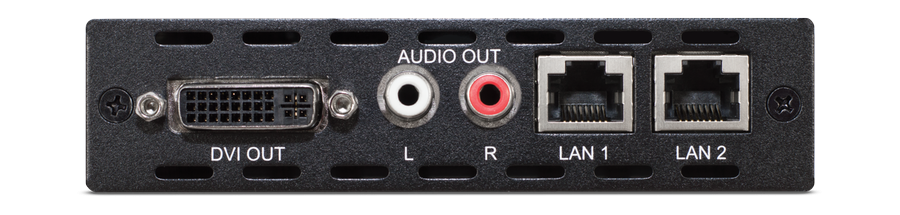

| Output: | 1x DVI-I [1x DVI-D] 2x RCA [1x Stereo (L/R)] 1x 9pin Dsub [1x RS-232 Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] 2x RJ45 [2x LAN Serving] |
| : | |
| Dimensions: | 450mm [W] x 410mm [D] x 90mm [H] |
| Net. Weight: | 380g |
| Gross Weight: | 560g |
