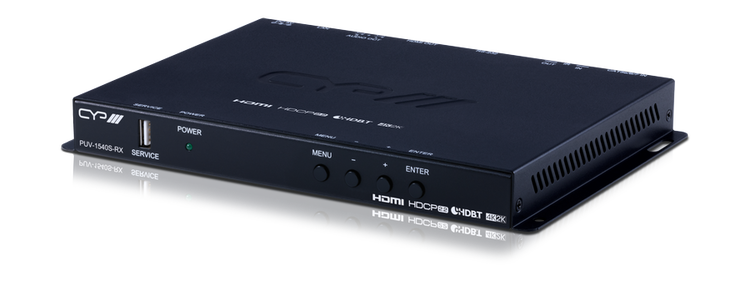

PUV-1540S-RX
Här har vi PUV-1540S-RX, detta är nästan som en liten blandning av tidigare produkter, den kan skala upp/ner video upplösningen samt korrigera vissa delar av bilden, bryta ut 2.0 LPCM ljud separat och ta emot materialet över en nätverkskabel genom HDBaseT. Den kan också strömförsörjas lokalt eller över nätverkskabeln genom Power over HDBaseT (PoH) om den är parad med en kompatibel sändare ( från PUV-1500 serien).
The PUV-1540S-RX is designed to scale and convert HDBaseT video and audio outputting via a local HDMI output. The HDBaseT input supports resolutions up to 4K@60Hz (4:2:0, 8-bit). The scaled HDMI output supports resolutions from 640×480@60Hz up to 4K@60Hz and provides the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels.
Furthermore, this unit supports passing 7.1 channel LPCM digital audio as well as advanced Bitstream and HD Bitstream audio formats. Analogue stereo audio breakout is also available (LPCM 2.0 sources only). Shortcut keys are provided to quickly change the output resolution to 1080p or XGA when needed for quick connection to a display or for troubleshooting purposes.
Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Transmitter (PUV-1500 Series), which allows for greater flexibility in installations. The unit can be controlled via front panel buttons with a comprehensive OSD.
Features:
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 1.1 and HDCP 2.2 compliant
- 1 x HDBaseT input
- 1 x HDMI output
- 1x Analogue Stereo Audio output
- HDBaseT input supports resolutions up to 4K@60Hz (4:2:0, 8-bit)
- Scaled HDMI output supports resolutions from 640×480@60Hz up to 4K@60Hz
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
- Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
- Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
- Analog stereo audio extraction support via 5-pin terminal block
- Unit may be powered locally or via 48v PoH from a compatible HDBaseT Transmitter (PUV-1500 Series)

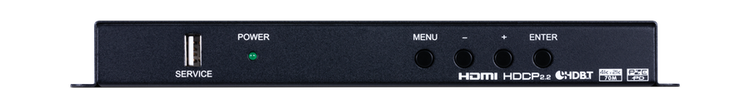

- Controllable via front panel buttons with comprehensive OSD
Specifications:

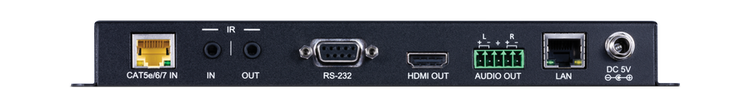

| Input: | 1x RJ45 [1x HDBaseT HDMI & Propriety Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x 9pin Dsub [1x RS-232 Data] 1x RJ45 [1x LAN Serving] 1x USB Type A [1x Service Port Propriety Data] |
| Output: | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x Phoenix (5 pin) [1x Analogue Stereo (Balanced or Unbalanced)] 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] |
| POE PSU | PoH |

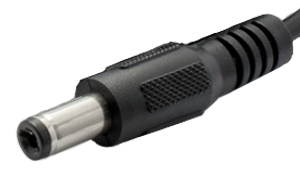

| PSU: | 5V/3.2A |
| Dimensions: | 158mm [W] x 231mm [D] x 25mm [H] |
| Net. Weight: | 1000g |
| Gross Weight: | 1500g |
