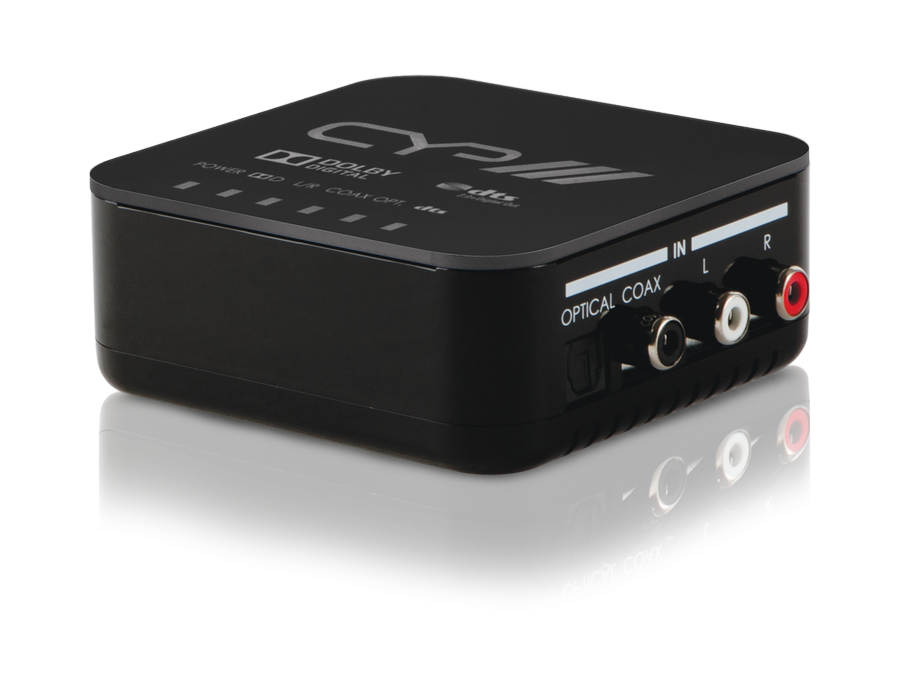

AU-22DD
AU-22DD är en finurlig liten omvandlarare som kan ta en optisk/analog/koaxial signal och göra om det till tidigare nämnda format simultant. Just denna kan även omvandla DTS som lillasyster AU-11DD inte klarar.
?The AU-22DD is a versatile audio converter allowing users to convert analogue audio signals to digital or digital audio signals to analogue. The AU-22DD supports Dolby Digital and DTS audio downmixing, and can simultaneously output from all 3 audio formats without any signal loss, adding extra flexibility to your AV system.
Embedded Dolby Digital & DTS Decoder technology for Digital downmixing
Bi-directional Digital/Analogue Audio Converter
Three-way conversion: Coaxial to Optical & Analogue, Optical to Coaxial & Analogue, and Analogue to Optical & Coaxial
Integrated digital interpolator filter and Digital-to-Analogue Converter (DAC)
Sampling rates 32 to 96 KHz
Provides electromagnetic noise free transmission
Features:
Embedded Dolby Digital & DTS Decoder technology for Digital downmixing
Bi-directional Digital/Analogue Audio Converter
Three-way conversion: Coaxial to Optical & Analogue, Optical to Coaxial & Analogue, and Analogue to Optical & Coaxial
Integrated digital interpolator filter and Digital-to-Analogue Converter (DAC)
Sampling rates 32 to 96 KHz
Provides electromagnetic noise free transmission
Specifications:
| Input: | 1x Toslink [1x Optical Dolby Digital / DTS / 2 Channel LPCM] 1x RCA [1x Coaxial Dolby Digital / DTS / 2 Channel LPCM] 2x RCA [1x Analogue Stereo (L/R)] |

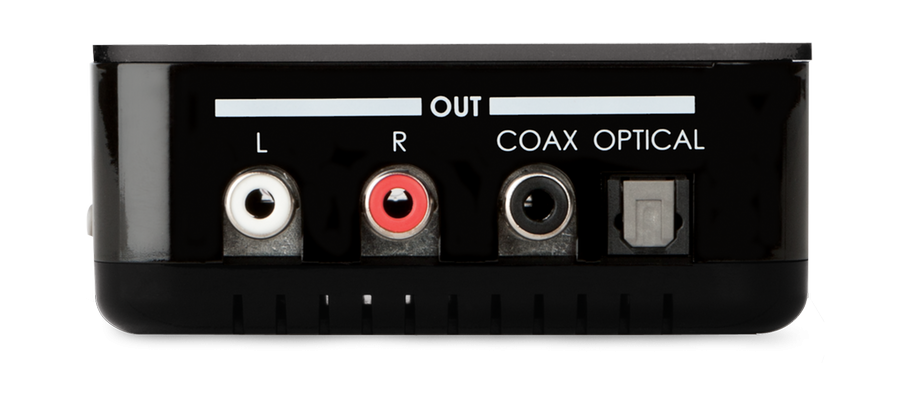

| Output: | 2x RCA [1x Analogue Stereo (L/R)] 1x RCA [1x Coaxial Dolby Digital / DTS / 2 Channel LPCM] 1x Toslink [1x Optical Dolby Digital / DTS / 2 Channel LPCM] |
| : | |
| PSU: | 5V/1A |
| Dimensions: | 85mm [W] x 97mm [D] x 35mm [H] |
| Net. Weight: | 108g |
| Gross Weight: | 130g |
