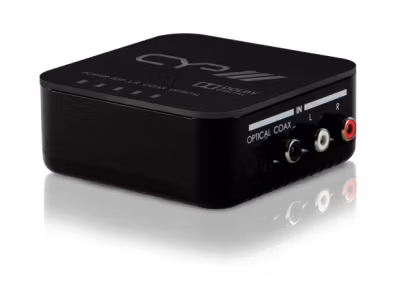

AU-11DD
Omvandla en optisk eller koaxial digital signal i tvåkanal eller 5.1 från en tv eller en annan källa till tvåkanalig vanlig stereo analogt.
Eller åt andra hållet om du så vill, men då kan den självklart inte göra det till 5.1.
The AU-11DD is designed to decode and downmix Dolby Digital audio signals to stereo. All outputs are simultaneous which is excellent for multi-room audio environments where both digital and analogue zones are required.
Features
Embedded Dolby Digital Decoder technology for Digital downmixing
Supports Dolby Digital, Analogue Stereo, & LPCM Stereo signals
Integrated digital interpolator filter and Digital-to-Analogue Converter (DAC)
Integrated Analogue-to-Digital Converter (ADC)
Supports Dolby Digital audio downmixing to 2-Channel Stereo audio
Supports Dolby Digital sampling rate 48kHz
Supports LPCM input sampling rates from 32 to 96 kHz
Output sampling rate is adjusted to 48kHz
Provides electromagnetic-noise-free transmission
Supports simultaneous outputs for added signal management flexibility, where Digital outputs maintain the Dolby Digital signal
Specification:
Inputs:
2x RCA [1x Analogue Stereo (L/R)]
1x RCA [1x Coaxial Dolby Digital / 2 Channel LPCM]
1x Toslink [1x Optical Dolby Digital / 2 Channel LPCM]
Outputs:
2x RCA [1x Analogue Stereo (L/R)]
1x RCA [1x Coaxial Dolby Digital / 2 Channel LPCM]
1x Toslink [1x Optical Dolby Digital / 2 Channel LPCM]
Power: 5V/1.2A, DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 95mm [W] x 85mm [D] x 35mm [H]
Gross Weight: 360g
Net. Weight: 100g
Features
Embedded Dolby Digital Decoder technology for Digital downmixing
Supports Dolby Digital, Analogue Stereo, & LPCM Stereo signals
Integrated digital interpolator filter and Digital-to-Analogue Converter (DAC)
Integrated Analogue-to-Digital Converter (ADC)
Supports Dolby Digital audio downmixing to 2-Channel Stereo audio
Supports Dolby Digital sampling rate 48kHz
Supports LPCM input sampling rates from 32 to 96 kHz
Output sampling rate is adjusted to 48kHz
Provides electromagnetic-noise-free transmission
Supports simultaneous outputs for added signal management flexibility, where Digital outputs maintain the Dolby Digital signal
Specification:
Inputs:
2x RCA [1x Analogue Stereo (L/R)]
1x RCA [1x Coaxial Dolby Digital / 2 Channel LPCM]
1x Toslink [1x Optical Dolby Digital / 2 Channel LPCM]
Outputs:
2x RCA [1x Analogue Stereo (L/R)]
1x RCA [1x Coaxial Dolby Digital / 2 Channel LPCM]
1x Toslink [1x Optical Dolby Digital / 2 Channel LPCM]
Power: 5V/1.2A, DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 95mm [W] x 85mm [D] x 35mm [H]
Gross Weight: 360g
Net. Weight: 100g
