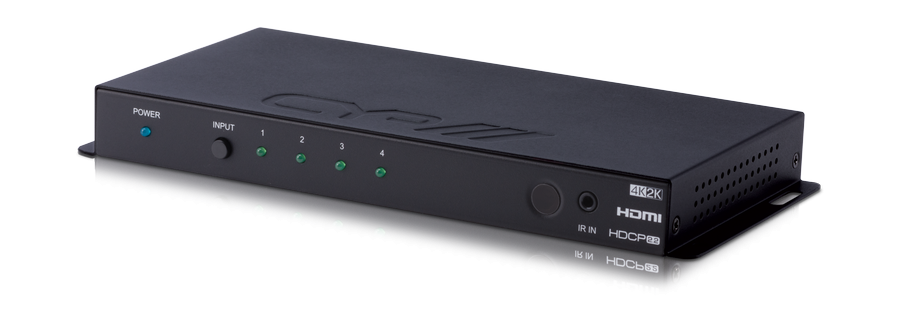

EL-41S-4K22
EL-41S-4K22 är en av CYP///s nyare HDMI switchar som presenterades på IEC mässan i Februari 2016.
Med stöd för 4K2K och 4K UHD upplösning samt HDCP 2.2 och HDMI 2.0 så är detta en av de mest kompetenta switcharna vi har att erbjuda just nu.
Denna switchen har även en "auto-switching" funktion som känner av och väljer den senast aktiva ingången.

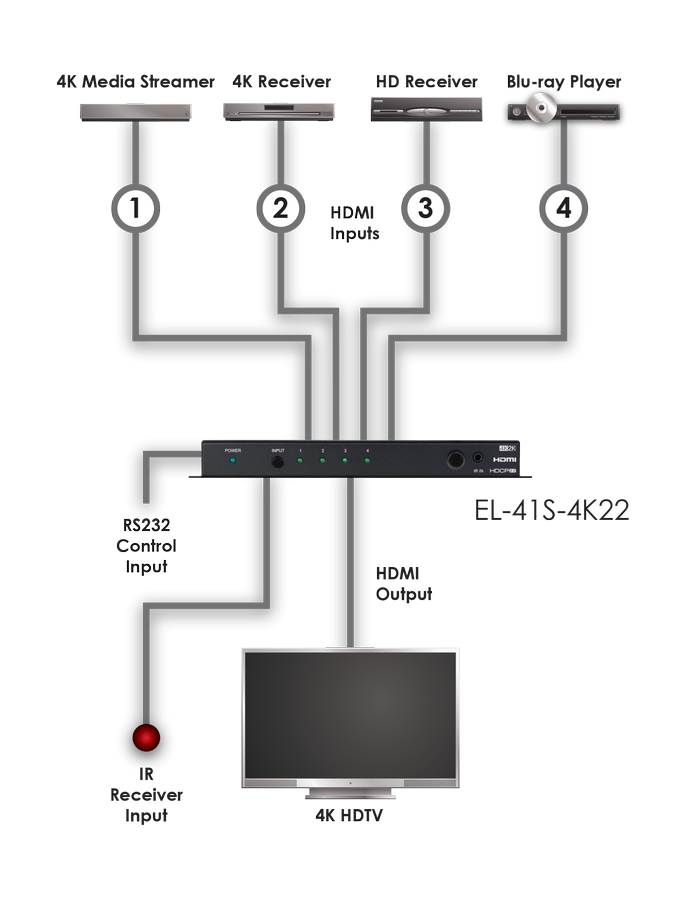

This 4-Way HDMI Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to a single HDMI display. This switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The EL-41S-4K22 supports all the latest features of the HDMI 2.0 specification such as 4K UHD resolutions (4K2K@60Hz - YUV4:4:4),HDR (High Dynamic Range), 'Deep Color', and High Definition audio. In addition, this switcher also features an Auto-Switching function which detects the last active input and switches to this input automatically for display. Control is via IR remote control and RS-232.
HDMI2.0, HDCP 2.2 and DVI compatible
Supports 4 HDMI inputs and 1 HDMI output
Supports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60 & 4096x2160 @24/25/30/50/60Hz)
Supports pass-through of HD audio formats of PCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports control via IR remote and RS-232
Supports Auto-switching which can send the signal of the latest active HDMI input source to output port
Inputs:
4x HDMI [4x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x USB Type A [1x Service Port Propriety Data]
Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data]
PSU: 5V / 2.6A
Dimentions: 117mm [W] x 231mm [D] x 25mm [H]
Net Weight: 590 g
Gross Weight: 1090 g
Features:
HDMI2.0, HDCP 2.2 and DVI compatible
Supports 4 HDMI inputs and 1 HDMI output
Supports HDTV resolutions up to 4K2K (3840x2160@24/25/30/50/60 & 4096x2160 @24/25/30/50/60Hz)
Supports pass-through of HD audio formats of PCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports control via IR remote and RS-232
Supports Auto-switching which can send the signal of the latest active HDMI input source to output port
Specifications:
Inputs:
4x HDMI [4x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x USB Type A [1x Service Port Propriety Data]
Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data]
PSU: 5V / 2.6A
Dimentions: 117mm [W] x 231mm [D] x 25mm [H]
Net Weight: 590 g
Gross Weight: 1090 g
En HDMI Switch används för att utöka antalet INGÅNGAR i en installation, om du vill öka antalet UTGÅNGAR skall du istället välja en HDMI Splitter!
Tänk också på att all utrustning där du skall låta dina signaler passera påverkar din bildkvalitet, välj HDMI splitter eller HDMI switch med omsorg från en välkänd tillverkare och leverantör för att säkerställa den fina bildkvalitet som HDMI kan erbjuda.
