OR-32USBC-4K22
The OR-32USBC-4K22 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The two most common video input interfaces (HDMI, USB-C) are included along with a pair of HDMI outputs, providing the ultimate in source compatibility and flexibility. This unit is HDCP 2.2 compliant and supports resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) and HDMI output A supports 4K downscaling to 1080p. The included USB-C input runs on the USB3.0 specs and supports AV, device charging as well as network connection.

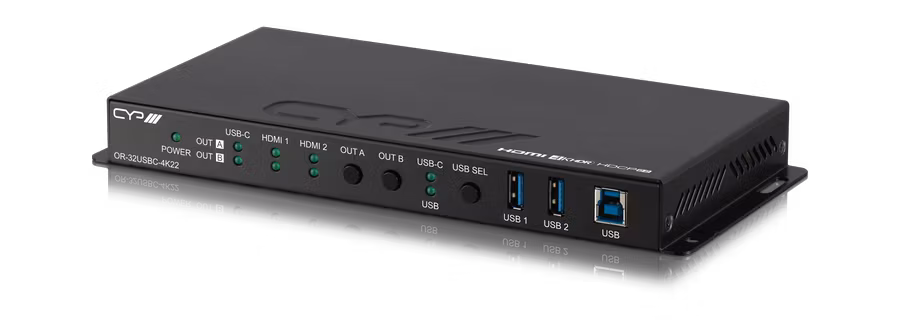

This matrix also includes a USB 3.0 hub with two host ports (Type-B and Type-C), plus two device ports (Type-A) for a flexible KVM configuration. It is ideal for use in meeting rooms, classrooms, and audio integration with USB expansion. This unit is controllable via front panel controls, WebGUI, Telnet and RS-232.
Features
- 2 x HDMI and 1 USB-C 4K60Hz 4:4:4 inputs
- 2 x Matrixed HDMI output with output A supporting 4K downscaling to 1080p
- USB-C port supports USB 3.0 speed, device powering 20V/3A and one gigabit Ethernet at best
- Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats
- Supports 4K HDR formats by HDR10, HLG and Dolby Vision
- Support USB 3.0 with one USB type B and one USB type C interface for connection to a host PC, plus two USB type A ports for peripheral devices such as keyboard, mouse and storage extension
- Supports auto-switch functionality with a “last memory” feature for both input ports and USB ports
- Supports basic signal event automation (via RS-232, IP or CEC)
Specifications:

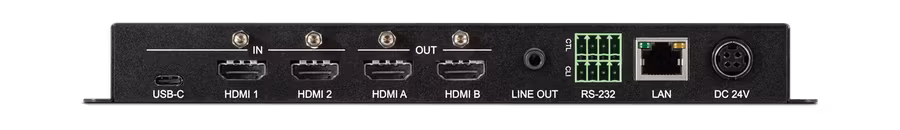

| Inputs | 1x USB-C [1x USB-C / Thunderbolt] 2x HDMI [2x HDMI Uncompressed AV and Data] 2x USB Type A [2x USB Propriety Data] 1x Phoenix (4 pin) [1x RS-232 local control] 1x RJ45 [1x LAN Serving] |
| Outputs | 2x HDMI [2x HDMI Uncompressed AV and Data] 1x USB 3 Type B [1x Power & Data] 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] 1x Phoenix (4 pin) [1x RS-232 local output] |
| PSU: | 24V/5A |
| Dimensions | 231mm [W] x 108mm [D] x 25mm [H] |
| Net Weight | 750g |
| Gross Weight | 1670g |
