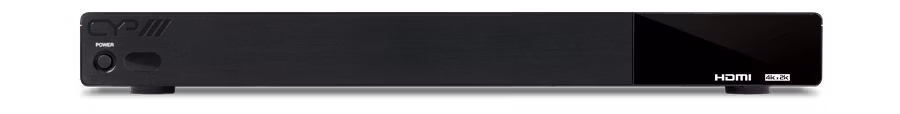

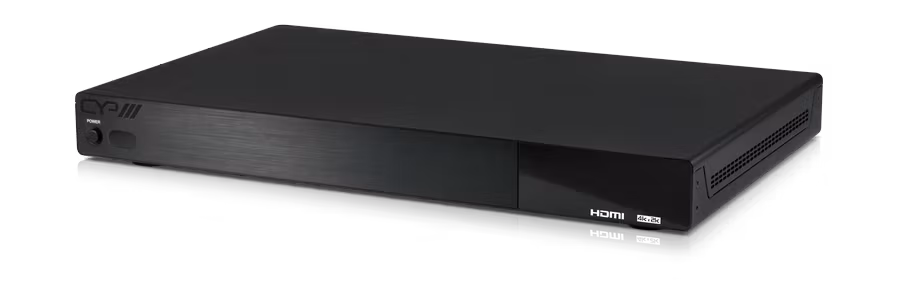

DS-MSC14-4K
DS-MSC14 står för Digital Signage Multi-Screen Controller 1 to 4. Vad har man en sådan till då?
Jo den kan används när man vill visa en bild över flera skärmar.
Ni har kanske sett en vägg med flera skärmar som visar en bild när ni varit på någon mässa eller liknande.
Vid dessa tillfällen har man använt sig av en Multi-Screen Controller så som denna.
Med denna så kan man köra 4K material från 1 källa upp till 4 skärmar.
The DS-MSC14-4K enables a 4K video wall to be created from any third party screens, the HDMI source can be displayed as a single image on each screen or 1 image across all screens. A single unit will create a 2x2 video wall. Multiple units can be combined with an HDMI distribution amp to create larger video wall configurations. Control is via RS-232, Telnet IP and our downloadable application which will allow full control of the DS-MSC14-4K from adjusting the bezel correction to pre-set video wall layouts.
Adjustable Bezel correction
The DS-MSC14-4K can be combined together using a HDMI splitter allowing the creation of larger video walls.
Video wall configurations can be pre-loaded into the our control application allowing simple switching between the video wall layouts.
One button push control allows one command to be executed to all connected devices e.g instructing all the screens to show one image per screen.
The DS-MSC14-4K can be controlled via RS-232, Telnet IP control or our piece of control software which can be found on the downloads tab of the website.
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Audio supported LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
HDMI, HDCP 1.4 and DVI compliant
Inputs:
1x HDMI [1x Uncompressed AV and Data]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x USB Mini B [1x Service Port Propriety Data]
Outputs
4x HDMI [4x Uncompressed AV and Data]
Power: 12V/3A
Dimensions: 482mm [W] x 274mm [D] x 52mm [H]
Net. Weight: 1300g
Gross Weight: 4256g
Features:
Adjustable Bezel correction
The DS-MSC14-4K can be combined together using a HDMI splitter allowing the creation of larger video walls.
Video wall configurations can be pre-loaded into the our control application allowing simple switching between the video wall layouts.
One button push control allows one command to be executed to all connected devices e.g instructing all the screens to show one image per screen.
The DS-MSC14-4K can be controlled via RS-232, Telnet IP control or our piece of control software which can be found on the downloads tab of the website.
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Audio supported LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
HDMI, HDCP 1.4 and DVI compliant
Specification:
Inputs:
1x HDMI [1x Uncompressed AV and Data]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x USB Mini B [1x Service Port Propriety Data]
Outputs
4x HDMI [4x Uncompressed AV and Data]
Power: 12V/3A
Dimensions: 482mm [W] x 274mm [D] x 52mm [H]
Net. Weight: 1300g
Gross Weight: 4256g
