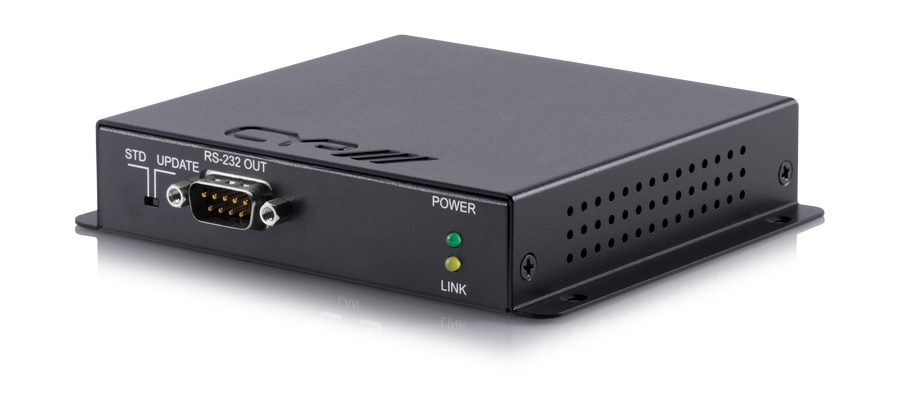

PUV-1210PL-RX
Mottagaren PUV-1210PL-RX gör det möjligt att ta emot video ( upp till och med 4K UHD), tillsammans med HD-ljud, IR båda hållen, RS-232 och Power over HDBaseT upp till 60 meter.
??????The PU-1210RX Receiver will accept transmitted video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and OAR (Optical Audio Return) up to 60m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 60m.?????
HDCP2.2 Compliant
High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports HDCP repeating and CEC functions
Supports 3D signals
Features:
HDCP2.2 Compliant
High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports HDCP repeating and CEC functions
Supports 3D signals
Specifications:
| Input: | 1x RJ45 [1x HDBaseT - HDMI & Propriety Data] |
| Output: | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x 9pin Dsub [1x RS-232 Data] |
| PoE PSU: | PoH |
| PSU: | 48V |
| Dimensions: | 116mm [W] x 106mm [D] x 27mm [H] |
| Net. Weight: | 360g |
| Gross Weight: | 680g |
