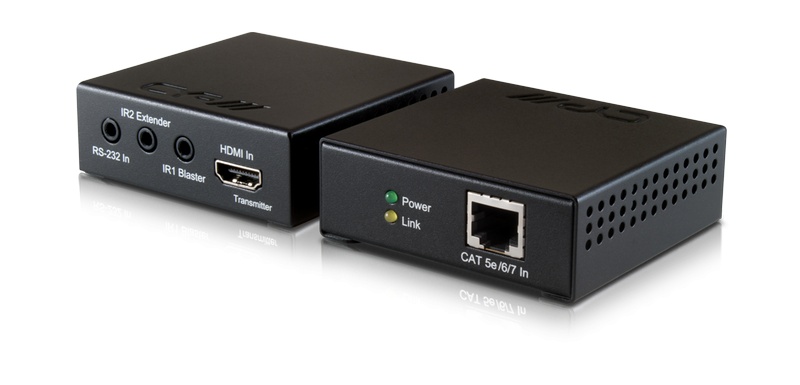

PU-515PL-KIT
PU-515PL-KIT gör det möjligt att skicka okomprimerade HDMI signaler över en enkel Cat5e/6/7 kabel. Denna prylen har utökad funktionalitet av RS-232, 2 vägs IR kontroll och "Power over Ethernet" (PoE) över samma kabel upp till 60 meter.

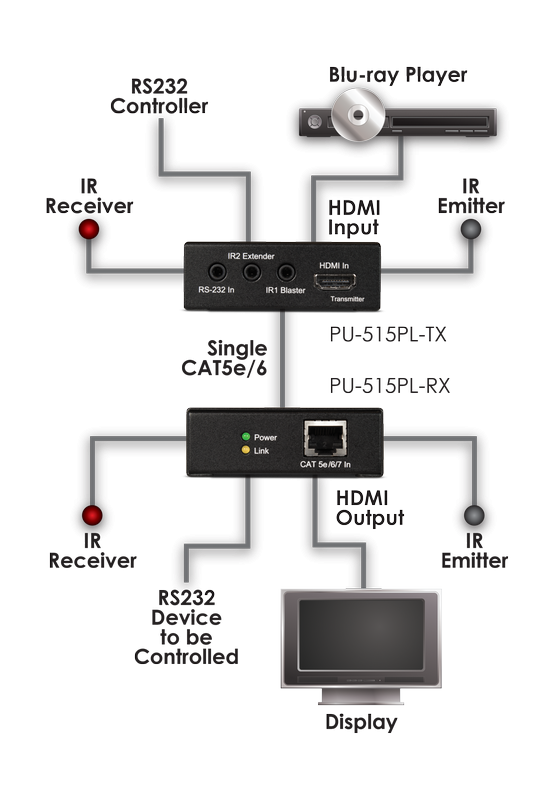

The PU-515PL-KIT allows uncompressed HDMI signals to be transmitted over a Single CAT5e/6/7 cable. This solution has the added features of RS-232, 2-way IR control, and Power over Ethernet (PoE) functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 60 metres.
HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m
Complies with HDBaseT™- Lite specifications
Full HD resolution support (1080p@60Hz/36-bit), 3D over 60m, 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour
Supports HDMI output up to 15m with 8/12-bit deep colour
Supports two-way IR, RS-232 Control, and Power Over Ethernet (PoE)
Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Features:
HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m
Complies with HDBaseT™- Lite specifications
Full HD resolution support (1080p@60Hz/36-bit), 3D over 60m, 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour
Supports HDMI output up to 15m with 8/12-bit deep colour
Supports two-way IR, RS-232 Control, and Power Over Ethernet (PoE)
Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Specifications:

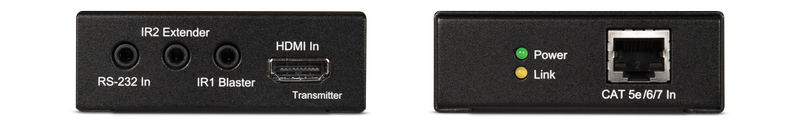

| Input: | 1x HDMI [1x HDMI (TX) Uncompressed AV and Data] 1x 3.5mm Stereo mini-jack [1x (TX) Infra Red Receiver] 1x 3.5mm Stereo mini-jack [1x (TX) RS-232] 1x RJ45 [1x HDBaseT Lite (RX) HDMI & Propriety Data] 1x 3.5mm Stereo mini-jack [1x (RX) Infra Red Receiver] |

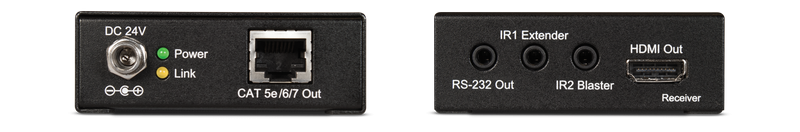

| Output: | 1x RJ45 [1x HDBaseT Lite (TX) HDMI & Propriety Data] 1x 3.5mm Stereo mini-jack [1x (TX) Infra Red Emitter] 1x HDMI [1x HDMI (RX) Uncompressed AV and Data] 1x 3.5mm Stereo mini-jack [1x (RX) Infra Red Emitter] 1x 3.5mm Stereo mini-jack [1x (RX) RS-232] |
| | |
| PSU: | 24V/1.25A |
| Dimensions: | 65mm [W] x 70mm [D] x 20mm [H] |
| Net. Weight: | 120g |
| Gross Weight: | 500g |
