PUV-3050TX-UA
The PUV-3050TX-UA is part of the new generation of HDBaseT 3.0 technology. This transmitter is capable of extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit or 4K HDR) video and HD audio, as well as control signals, via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0.
USB connectivity allows extension of USB signals, ideal for uses such as KVM (keyboard and mouse) or touch / interactive displays, and with USB2.0 support this connection allows for fast data transfer and expanded peripheral compatibility.
For added flexibility, this Transmitter (when paired with a compatible receiver) supports bi-directional analogue audio.
This product is ideal for any scenario which needs uncompressed video and audio over distance, such as medical equipment, conference rooms, education, residential, and more.
Compatible Receiver required.
Features:
- Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video over HDBaseT
- HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
- HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
- HDBaseT feature support: HD Video and Audio, Bi-directional analog audio, and Control (bidirectional USB/IR/RS-232 pass-through)
- USB 2.0 Type-A device ports and 1 Micro USB 2.0 host port
- Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.
- Analogue audio I/O pathway across the HDBaseT link
- Local HDMI output
- Local analogue audio output (from analogue line in)
Specifications:

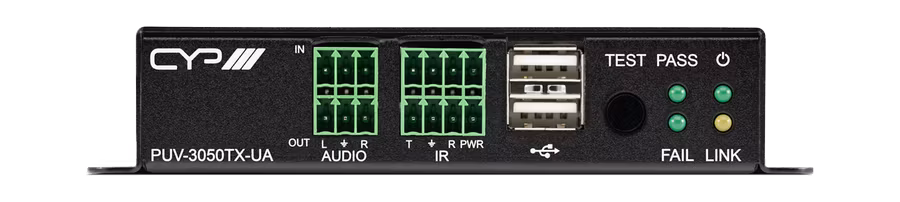

| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x USB Micro [1x Service Port Propriety Data] 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input] 2x USB Type A [2x USB pathway Propriety Data] |

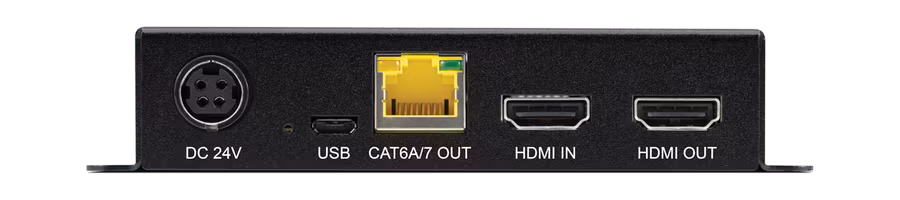

| Outputs | 1x HDMI [1x HDMI local bypass Uncompressed AV and Data] 1x RJ45 [1x HDBaseT 3 HDMI & Propriety Data] 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Output] |
| PSU: | 24V/2.7A |
| Dimensions | 116mm [W] x 106mm [D] x 27mm [H] |
| Net Weight | 400g |
| Gross Weight | 800g |
