EL-42PIP
EL-42PiP är en HDMI switch med 4 ingångar och 2 utgångar som arbetar simultant.
Tack vare möjligheten att ta in 4 st 1080p signaler och kunna presentera det på en eller två skärmar i 4K upplösning så förloras väldigt lite av kvalitén.
Kontroll av boxen är möjlig genom bland annat IR, RS-232, webbgränssnitt eller Telnet.
The EL-42PIP is an advanced 4 Way HDMI switch with integrated Multi-view (Picture In Picture) technology. This plug and play solution offers advanced control and display options for the integration of four 1080p HDMI sources and output 4K (4x 1080P) to two compatible displays. The output to each connected screen can be independently configured to display the desired sources either in full screen mode or picture-in-picture (PIP) mode. Additional flexibility is provided with on-board pre-configured PIP settings or create and save your favourite custom output configurations to suit any AV installation.
Control is via preset hot keys, OSD, IR, RS-232 and Telnet for instant control and switching. The WebGUI feature allows complete control over the size, position and setting of the source images independently to each output.
The EL-42PIP is the perfect cost effective solution for integrating CCTV or a combination of HDMI sources to two independent displays within any commercial or residential AV installation.
Integration of up to 4 sources to two independent displays
Supports 8 preset screen layout configurations & an additional 4 custom configurations
Seamless switching channels and on screen windows
Fade in out display functionality
Ability to mirror and rotate images
Zoom & Shrink HDMI Video and / or Overlay
Supports adjustment of individual channel size and position
Resolutions supported : HDTV: 480i to 1080p, 1080p@24, 4K2K@30: PC: VGA to WUXGA@60(RB)
Supports 4K@24/25/30 on HDMI inputs 1 & 3 only
Supports IR, On-screen Display (OSD), RS232,Telnet/WebGUI, Remote and on-panel controls
Control is via preset hot keys, OSD, IR, RS-232 and Telnet for instant control and switching. The WebGUI feature allows complete control over the size, position and setting of the source images independently to each output.
The EL-42PIP is the perfect cost effective solution for integrating CCTV or a combination of HDMI sources to two independent displays within any commercial or residential AV installation.
Features:
Integration of up to 4 sources to two independent displays
Supports 8 preset screen layout configurations & an additional 4 custom configurations
Seamless switching channels and on screen windows
Fade in out display functionality
Ability to mirror and rotate images
Zoom & Shrink HDMI Video and / or Overlay
Supports adjustment of individual channel size and position
Resolutions supported : HDTV: 480i to 1080p, 1080p@24, 4K2K@30: PC: VGA to WUXGA@60(RB)
Supports 4K@24/25/30 on HDMI inputs 1 & 3 only
Supports IR, On-screen Display (OSD), RS232,Telnet/WebGUI, Remote and on-panel controls
Specifications:

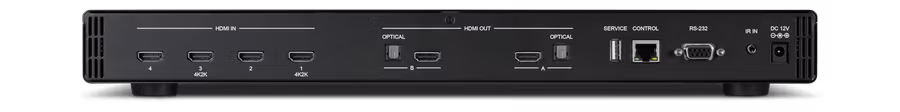

| Input: | 4x HDMI [4x HDMI Uncompressed AV and Data] 1x 9pin Dsub [1x RS-232 Data] 1x USB Type A [1x Service - Propriety Data] |
| Output: | 2x HDMI [2x HDMI Uncompressed AV and Data] |
| Dimensions: | 269mm [W] x 438mm [D] x 52mm [H] |
| Net. Weight: | 3200g |
| Gross Weight: | 4500g |
En HDMI Switch används för att utöka antalet INGÅNGAR i en installation, om du vill öka antalet UTGÅNGAR skall du istället välja en HDMI Splitter!
Tänk också på att all utrustning där du skall låta dina signaler passera påverkar din bildkvalitet, välj HDMI splitter eller HDMI switch med omsorg från en välkänd tillverkare och leverantör för att säkerställa den fina bildkvalitet som HDMI kan erbjuda.
