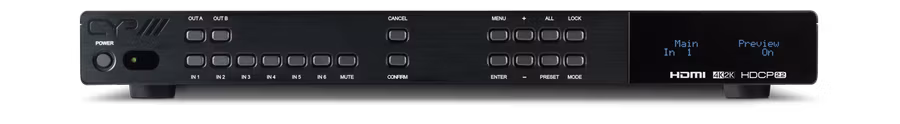

OR-HD62CD-4K22
OR-HD62CD-4K22 är en matris växel med HDMI 2.0 och HDCP 2.2 stöd med 6 ingångar och 2 utgångar.
En fördel med matrisen är att den släpper ut ljudet både på HDMI utgången och en separat optisk utgång ( varje HDMI utgång har en dedikerad Optisk utgång )
För att styra matrisen kan man använda de manuella knapparna på fronten, IR, RS-232, telnet eller ip kontroll.
?The OR-HD62CD-4K22 is an advanced 4K UHD HDMI matrix switcher designed for both commercial and residential applications.
The 6 x 2 HDMI matrix switch enables 4K UHD HDCP 2.2 HDMI signals to be routed from any of the six HDMI inputs to either of the two independent HDMI outputs. Additionally a cutting edge picture in picture (PIP) preview mode can be selected where the unselected sources (excluding 3D and 4K UHD) are displayed in a row of 5 small windows overlaid on top of the primary selected source. In preview mode, both HDMI outputs show identical feeds. Further features include fast switching technology, on-board EDID management tool (via on screen display) and optical audio de-embedding for added flexibility of installation.
Control is via front panel buttons, IR remote control, RS232, Telnet or IP control for easy integration into control systems.
HDCP 2.2, HDMI 1.4 and DVI compliant
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
High Definition audio supported : Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + 7.1 Channel LPCM
Optical de-embedding from selected HDMI input, audio sampling rate of 192kHz
Fast switching technology
Supports 10 bit colour, 4K UHD, 3D and 1080p signals
Built in EDID management
Preview mode uses Picture in Picture technology to display sources simultaneously on individual outputs
The 6 x 2 HDMI matrix switch enables 4K UHD HDCP 2.2 HDMI signals to be routed from any of the six HDMI inputs to either of the two independent HDMI outputs. Additionally a cutting edge picture in picture (PIP) preview mode can be selected where the unselected sources (excluding 3D and 4K UHD) are displayed in a row of 5 small windows overlaid on top of the primary selected source. In preview mode, both HDMI outputs show identical feeds. Further features include fast switching technology, on-board EDID management tool (via on screen display) and optical audio de-embedding for added flexibility of installation.
Control is via front panel buttons, IR remote control, RS232, Telnet or IP control for easy integration into control systems.
Features:
HDCP 2.2, HDMI 1.4 and DVI compliant
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
High Definition audio supported : Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + 7.1 Channel LPCM
Optical de-embedding from selected HDMI input, audio sampling rate of 192kHz
Fast switching technology
Supports 10 bit colour, 4K UHD, 3D and 1080p signals
Built in EDID management
Preview mode uses Picture in Picture technology to display sources simultaneously on individual outputs
Specifications:
| Input: | 6x HDMI [6x Uncompressed AV and Data] 1x 3.5mm Stereo mini-jack [1x IR Propriety Data] 1x 9pin Dsub [1x RS-232 Data] 1x RJ45 [1x IP Control] 1x USB Type A [1x Service Port Propriety Data] |
| Output: | 2x HDMI [2x Uncompressed AV and Data] 2x Toslink [2x Optical 2 Channel LPCM / Dolby Digital / DTS] |
| PSU: | 5V/2.6A |
| Dimensions: | 276mm [W] x 482mm [D] x 49mm [H] |
| Net. Weight: | 3200g |
| Gross Weight: | 4500g |
