OR-44-4K22
OR-44-4K22 är en matris växel med HDMI 2.0 och HDCP 2.2 stöd vilket gör det möjligt att transportera upplösningar upp till 4K2K@60Hz - YUV4:4:4.
För att styra matrisen kan man använda de manuella knapparna på fronten, IR, RS-232, telnet eller ett webbgränssnitt.

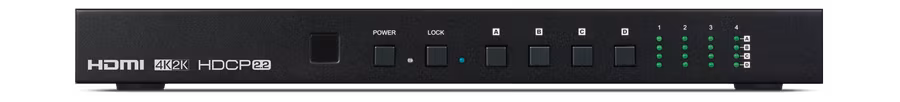

??This 4x4 HDMI Matrix Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to any of the four connected HDMI display. This matrix switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The unit supports all the latest features of the HDMI2.0 specification such as 4K UHD resolutions (4K2K@60Hz - YUV4:4:4),HDR (High Dynamic Range), 'Deep Color', and High Definition audio. Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI.
HDMI 2.0 and HDCP 2.2 compliant
Routes four HDMI sources to four HDMI displays
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
4K UHD resolutions (4K2K@60Hz - YUV4:4:4)
Supports HDR (High Dynamic Range) and Deep Colour
Features:
HDMI 2.0 and HDCP 2.2 compliant
Routes four HDMI sources to four HDMI displays
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
4K UHD resolutions (4K2K@60Hz - YUV4:4:4)
Supports HDR (High Dynamic Range) and Deep Colour
Specifications:

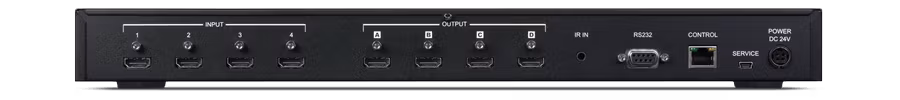

Input: | 4x HDMI [4x HDMI Uncompressed AV and Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x 9pin Dsub [1x RS-232 Data] 1x RJ45 [1x IP Control] |
Output: | 4x HDMI [4x HDMI Uncompressed AV and Data] |
: | |
PSU: | 24V/3.75A |
Dimensions: | 160mm [W] x 436mm [D] x 44mm [H] |
Net. Weight: | 1945g |
Gross Weight: | 2800g |
